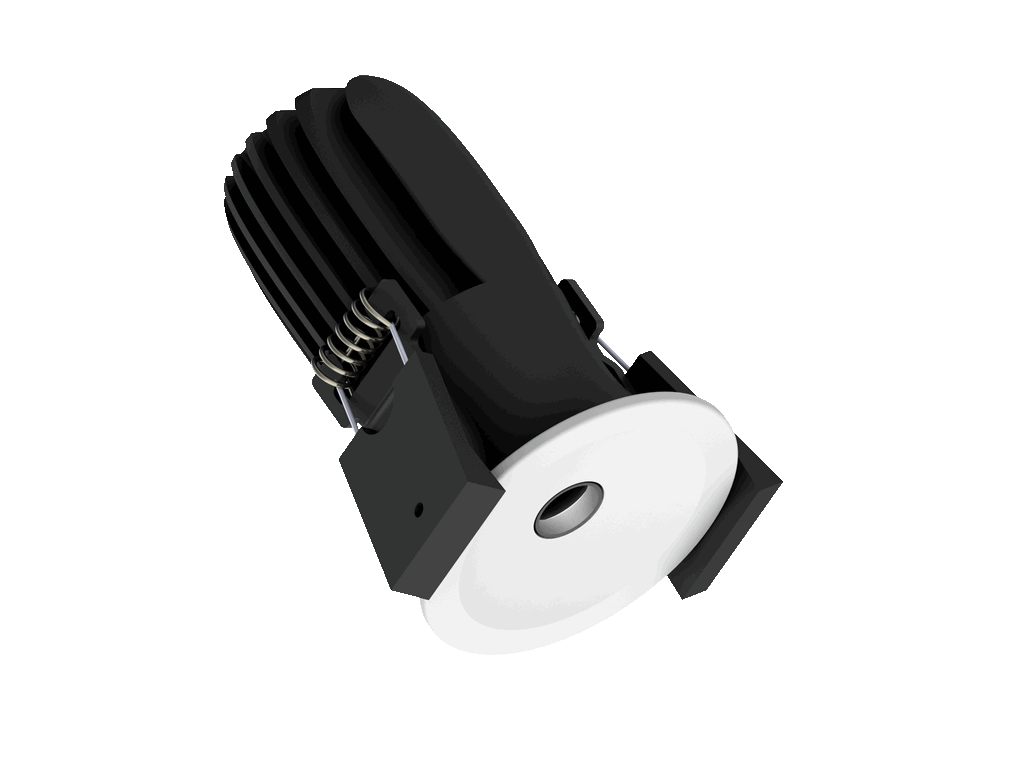

Pointer 40 Gen2
Standard product incl. connection part or power supply
Would you like to order or receive more information?
Contact usSpecifications
| Article number | 0N2703MWWS13 |
|---|---|
| Product description | Pointer 40 GEN2 425Lm 3000K CRI82 60deg ws triac wh +PSU |
| Ean | 8716197307373 |
| Type | Standard product incl. connection part or power supply |
| Model | Pointer 40 Gen2 |
| Lumen output | 425Lm |
| Cct | 3000K |
| Cri | 82 |
| Wattage | 6.6W |
| Lumen watts | 64 Lm/W |
| Voltage in | 220-240V~ |
| Power factor | 0,95 |
| Efficiency | 78 |
| In rush current | 2A 50µS |
| Max quantity 16 amp | 80 pcs |
| Dimming | Triac dimming |
| Color | Matt white RAL 9016 |
| Material | Die-cast aluminium |
| Ingress protection | IP44/IP20 |
| Beam angle | 60deg ° |
|---|---|
| Ingress protection shock | IK10 |
| Safety class | II |
| Safety norms | EN60598 / EN62031 / EN62471 |
| Emc norms | EN55015 |
| Operating temperature | -20degC / +45degC |
| Dimensions | 47X73mm |
| Dimensions carton | 386x286x500mm |
| Lifetime L90B10 reported | >60.000 hrs |
| Warranty | 7 years |
| Type of ceiling spring | Wire spring |
| Hole size | Ø 40mm |
| Promotions | 0 |
| Technology | 35 LV |
| Product group name | Downlights Mini |
| W beschikbaar | 0 |

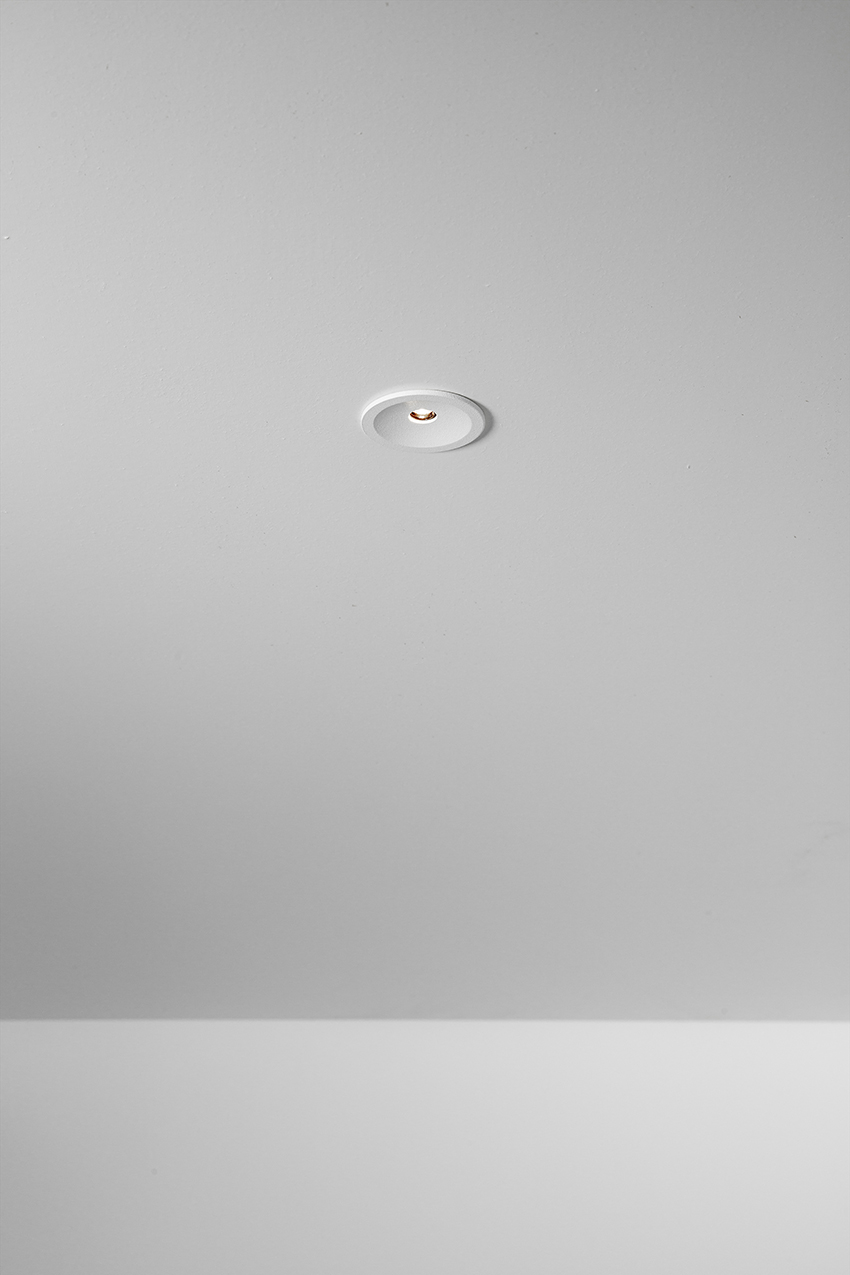

| W product pic | Picture - ILLUXTRON_ Pointer 40 - White_01.jpg |

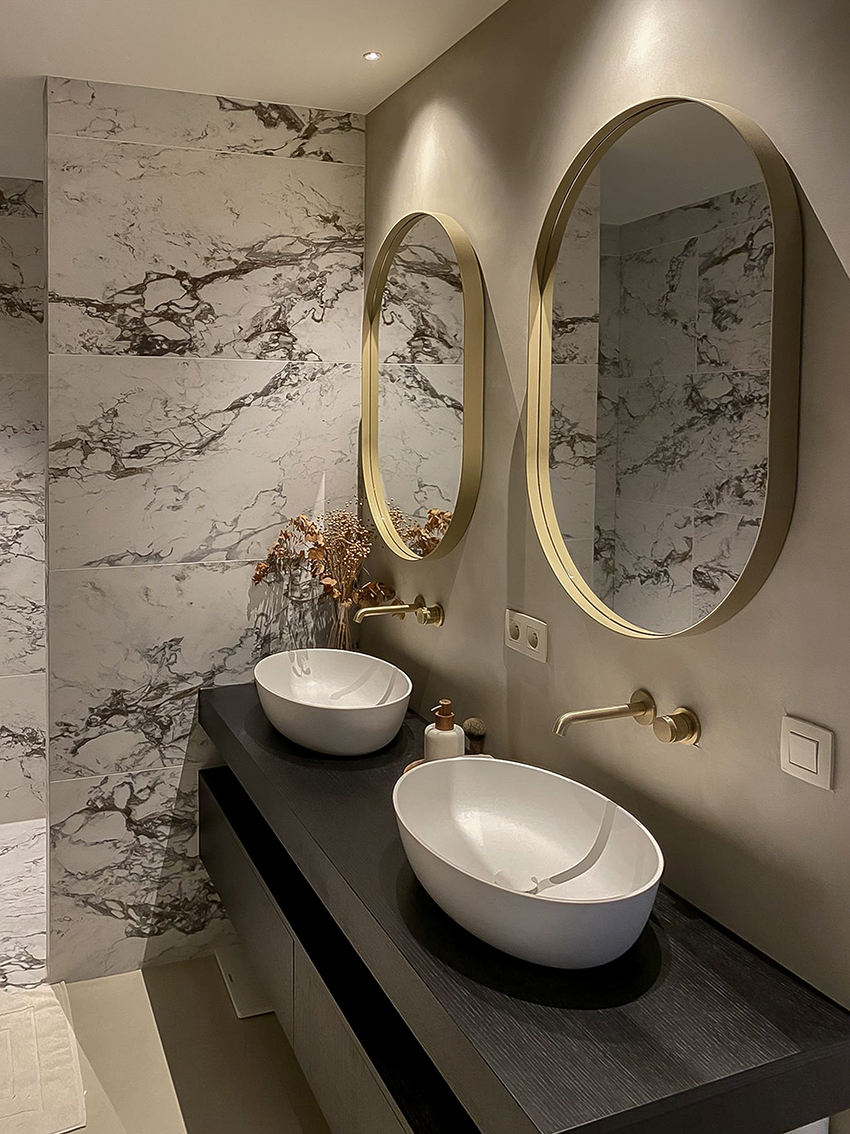

| W project pic | Picture - project Pointer 40 - White_02.jpg |
| Collection | ILLUXTRON COLLECTION |
