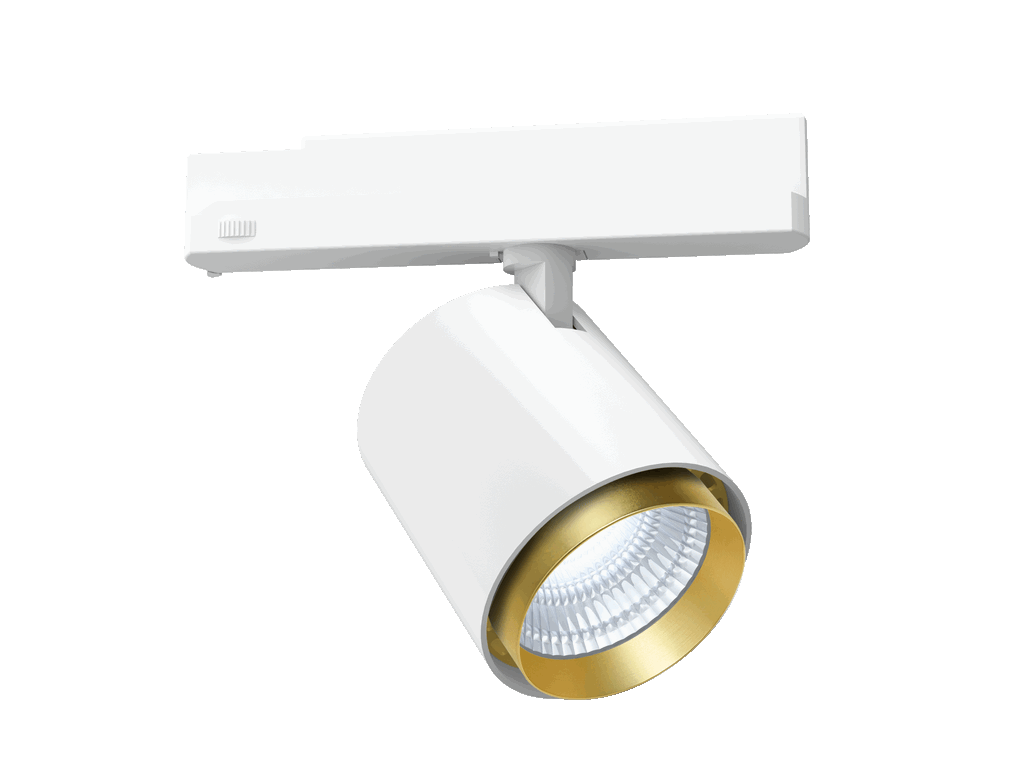

Odion 3F XS
Standard product incl. connection part or power supply
Would you like to order or receive more information?
Contact usSpecifications
| Article number | 35040361HJ02 |
|---|---|
| Product description | Odion 3F XS 3000Lm 3000K no dim CRI97 60º white/gold |
| Ean | 8716197170861 |
| Type | Standard product incl. connection part or power supply |
| Model | Odion 3F XS |
| Lumen output | 3000Lm |
| Cct | 3000K |
| Cri | 97 |
| Wattage | 41.7W |
| Lumen watts | 72 Lm/W |
| Voltage in | 220-240V~ |
| Power factor | 0,97 |
| Efficiency | 86 |
| In rush current | 5A 50µS |
| Max quantity 16 amp | 50 pcs |
| Dimming | No dimming |
| Color | White/Gold |
| Material | Die-cast aluminium |
| Ingress protection | IP20 |
| Beam angle | 60deg° |
|---|---|
| Ingress protection shock | IK09 |
| Safety class | I |
| Safety norms | EN60598 / EN62031 / EN62471 |
| Emc norms | EN55015 |
| Operating temperature | -20degC / +45degC |
| Dimensions | 227x170x80mm |
| Dimensions carton | 800x600x300mm |
| Lifetime L90B10 reported | >60.500 hrs |
| Warranty | 7 years |
| New | 0 |
| Promotions | 0 |
| Technology | COB |
| Product group name | Trackspots |
| W beschikbaar | 0 |

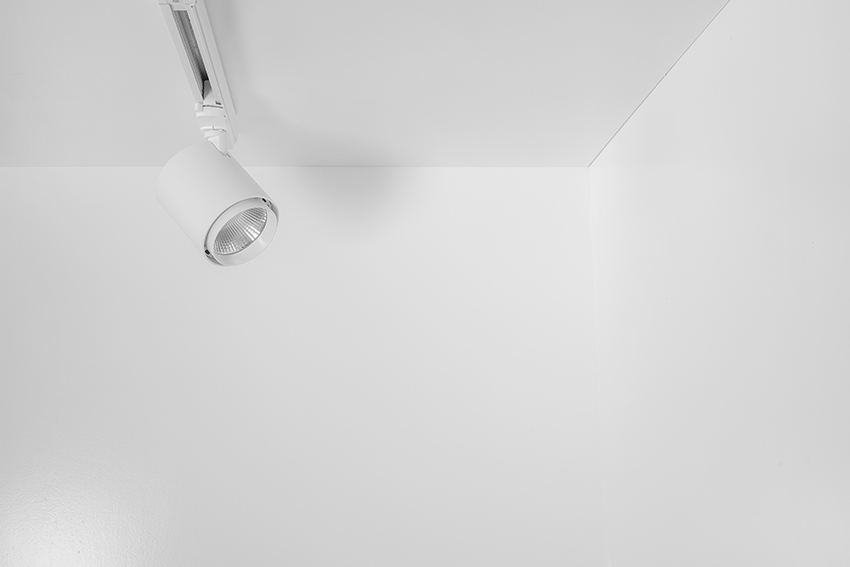

| W product pic | Picture - ILLUXTRON_Odion XS - White_1.jpg |

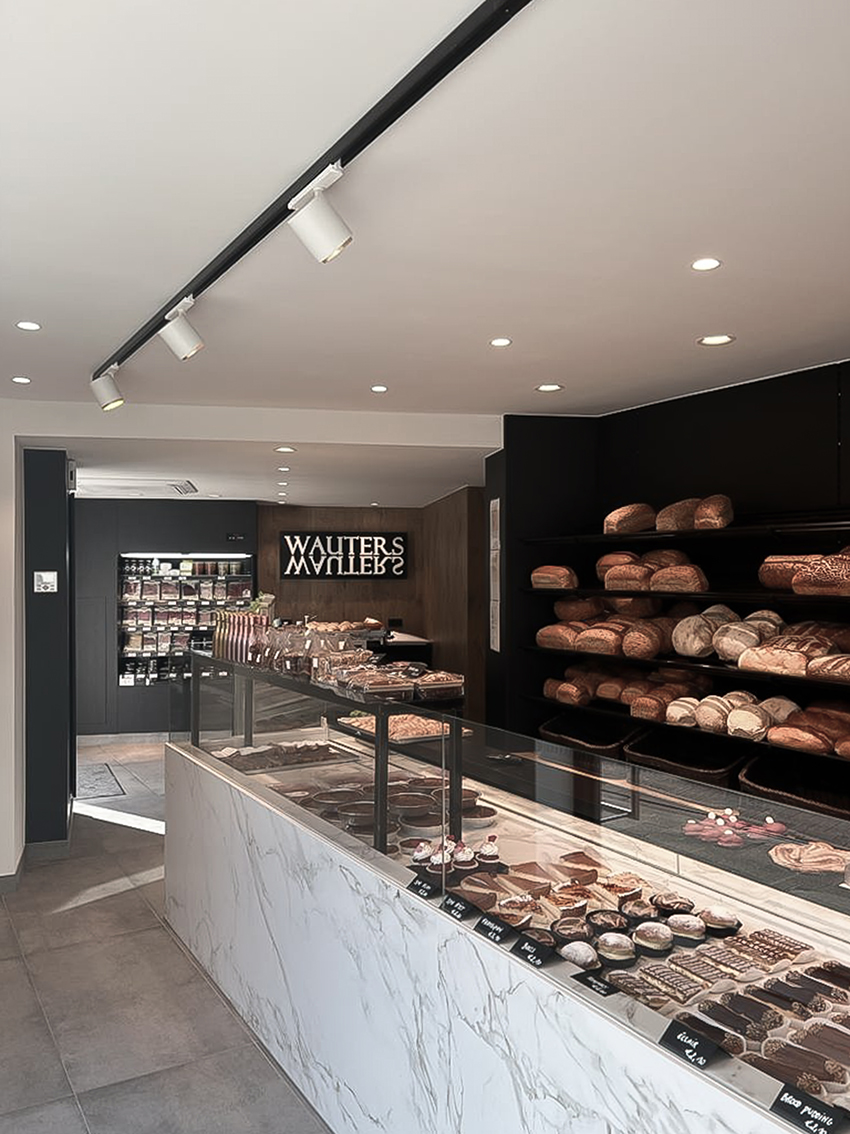

| W project pic | Picture - project Odion XS -White_01.jpg |
| Collection | ILLUXTRON COLLECTION |
