Linea 120
Standard product incl. connection part or power supply
Would you like to order or receive more information?
Contact usSpecifications
| Article number | 895E03BL2S02 |
|---|---|
| Product description | Linea 120 LV 1250Lm 1800-3000K CRI97 80deg dali gs black |
| Ean | 8716197086650 |
| Type | Standard product incl. connection part or power supply |
| Model | Linea 120 |
| Lumen output | 1250Lm |
| Cct | 1800-3000K |
| Cri | 97 |
| Wattage | 13.8W |
| Lumen watts | 91 Lm/W |
| Voltage in | 220-240V~ |
| Power factor | 0,95 |
| Efficiency | 89 |
| In rush current | 5A 50µS |
| Max quantity 16 amp | 50 pcs |
| Dimming | DALI |
| Color | Matt black RAL 9005 |
| Material | Die-cast aluminium |
| Ingress protection | IP65/IP20 |
| Beam angle | 80deg° |
| Ingress protection shock | IK03 |
|---|---|
| Safety class | II |
| Safety norms | EN60598 / EN62031 / EN62471 |
| Emc norms | EN55015 |
| Operating temperature | -20degC / +45degC |
| Dimensions | 180x65mm |
| Dimensions carton | 800x600x300mm |
| Lifetime L90B10 reported | >60.500 hrs |
| Warranty | 7 years |
| Type of ceiling spring | Gyproc spring |
| Hole size | Ø 120-165mm |
| New | 0 |
| Promotions | 0 |
| Technology | 120 LV |
| Product group name | Downlights Large |
| W beschikbaar | 0 |

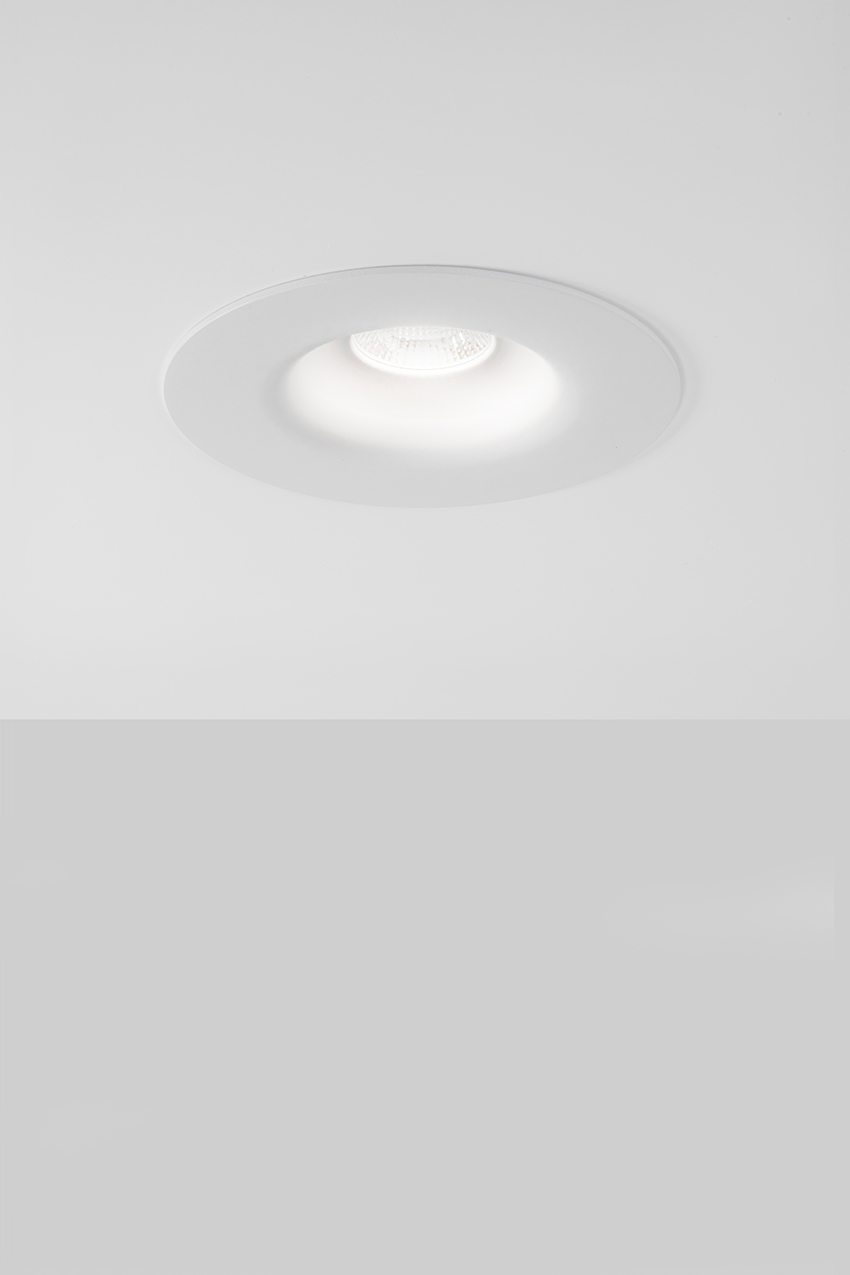

| W product pic | Picture - ILLUXTRON_Linea 120 - White.jpg |

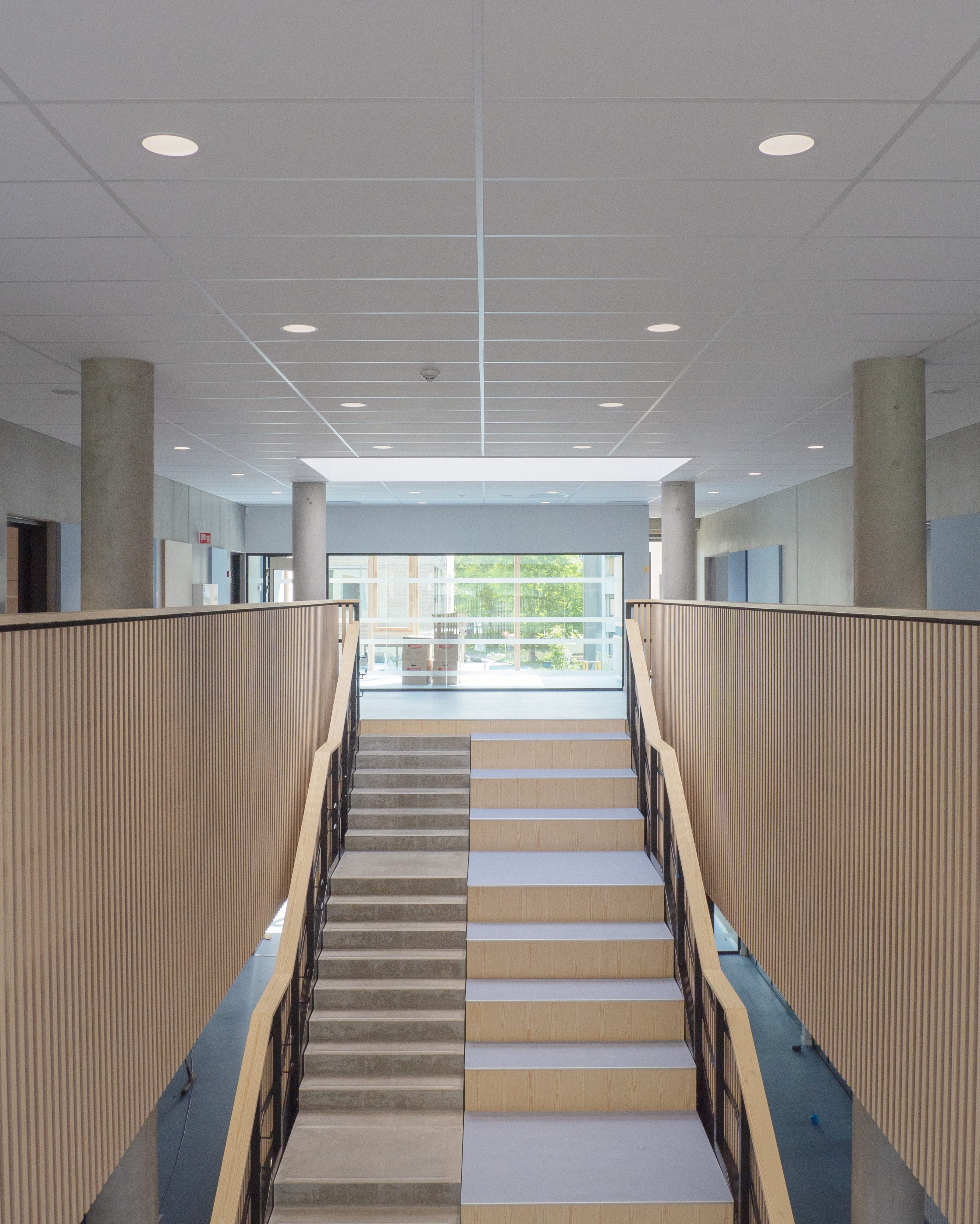

| W project pic | Picture - project Linea 120 - White_3.jpg |
| Collection | ILLUXTRON COLLECTION |
