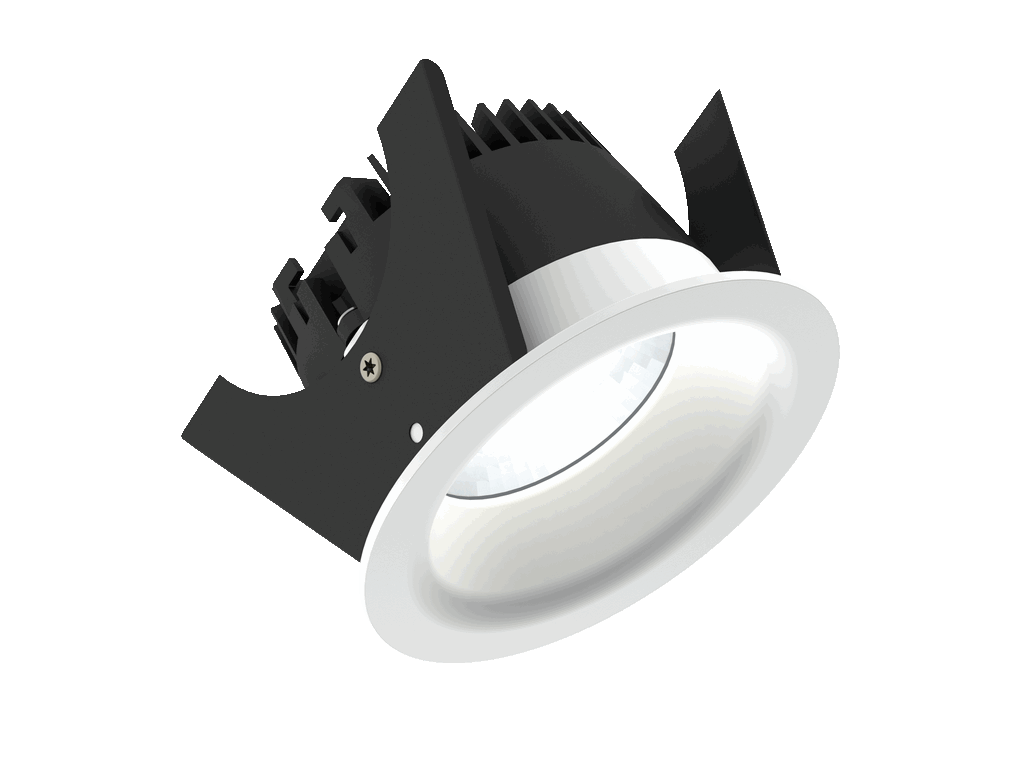

Linea 75

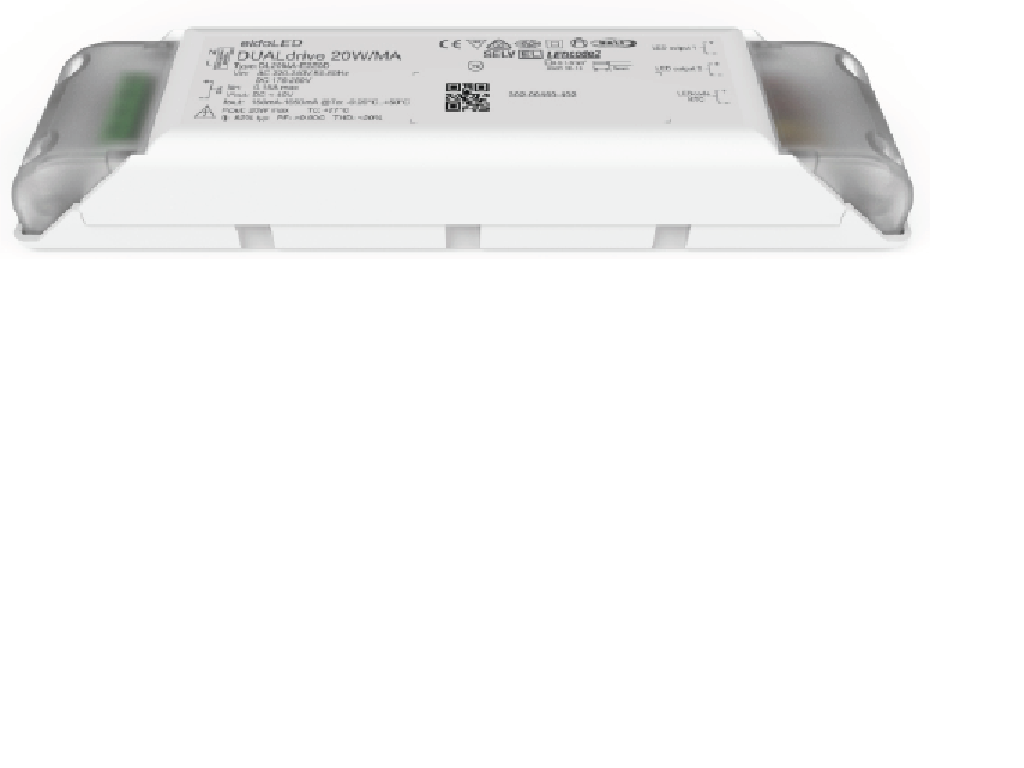

Standard product incl. connection part or power supply
Would you like to order or receive more information?
Contact usSpecifications
| Article number | 916A03MW4W02 |
|---|---|
| Product description | Linea 75 LV-TW 1250Lm 2700-6500K CRI95/86 60° dali cs wh |
| Ean | 8716197184998 |
| Type | Standard product incl. connection part or power supply |
| Model | Linea 75 |
| Lumen output | 1250Lm |
| Cct | 2700-6500K |
| Cri | 95/86 |
| Wattage | 11.4W |
| Lumen watts | 110 Lm/W |
| Voltage in | 220-240V~ |
| Power factor | 0,90 |
| Efficiency | 82 |
| In rush current | 200mA²s |
| Max quantity 16 amp | 106 pcs |
| Dimming | DALI |
| Color | Matt white RAL 9016 |
| Material | Die-cast aluminium |
|---|---|
| Ingress protection | IP65/IP20 |
| Beam angle | 60° |
| Ingress protection shock | IK03 |
| Safety class | II |
| Safety norms | EN60598 / EN62031 / EN62471 |
| Emc norms | EN55015 |
| Operating temperature | -20°C / +45°C |
| Dimensions | 90x60mm |
| Dimensions carton | 390x360x330mm |
| Lifetime L90B10 reported | >70.000 Hrs |
| Warranty | 7 years |
| Type of ceiling spring | Concrete spring |
| Hole size | Ø 75mm |
| Technology | 75 LV-TW |
| Product group name | Downlights Small |
