Linea 75
Standard product incl. connection part or power supply
Would you like to order or receive more information?
Contact usSpecifications
| Article number | 912A03BL5F02 |
|---|---|
| Product description | Linea 75 HV-FD 800Lm 4000K CRI93 80deg triac cs black |
| Ean | 8716197067482 |
| Type | Standard product incl. connection part or power supply |
| Model | Linea 75 |
| Lumen output | 800Lm |
| Cct | 4000K |
| Cri | 93 |
| Wattage | 10.1W |
| Lumen watts | 79 Lm/W |
| Voltage in | 220-240V~ |
| Power factor | 0,99 |
| In rush current | <100mA / 0 us (soft start) |
| Max quantity 16 amp | 48 pcs |
| Dimming | Triac dimming |
| Color | Matt black RAL 9005 |
| Material | Die-cast aluminium |
| Ingress protection | IP65/IP20 |
| Beam angle | 80deg° |
|---|---|
| Ingress protection shock | IK03 |
| Safety class | I |
| Safety norms | EN60598 / EN62031 / EN62471 |
| Emc norms | EN55015 |
| Operating temperature | -20degC / +45degC |
| Dimensions | 90x60mm |
| Dimensions carton | 386x286x365mm |
| Lifetime L90B10 reported | >70.000 hrs |
| Warranty | 7 years |
| Type of ceiling spring | Concrete spring |
| Hole size | Ø 75mm |
| New | 0 |
| Promotions | 0 |
| Technology | HV-FD |
| Product group name | Downlights Small |
| W beschikbaar | 0 |

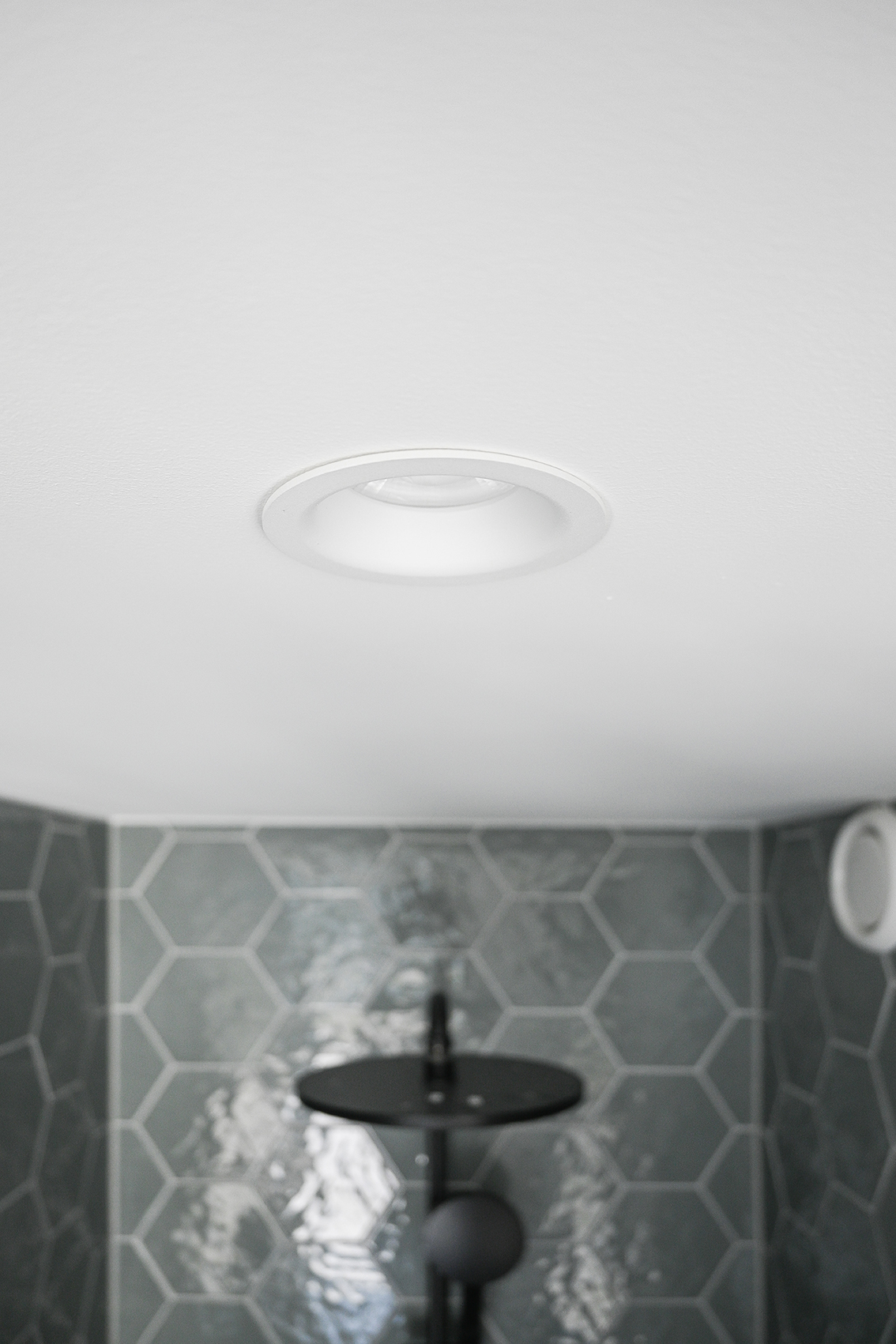

| W project pic | Picture - project Linea 75 - White_03.jpg |
